Description

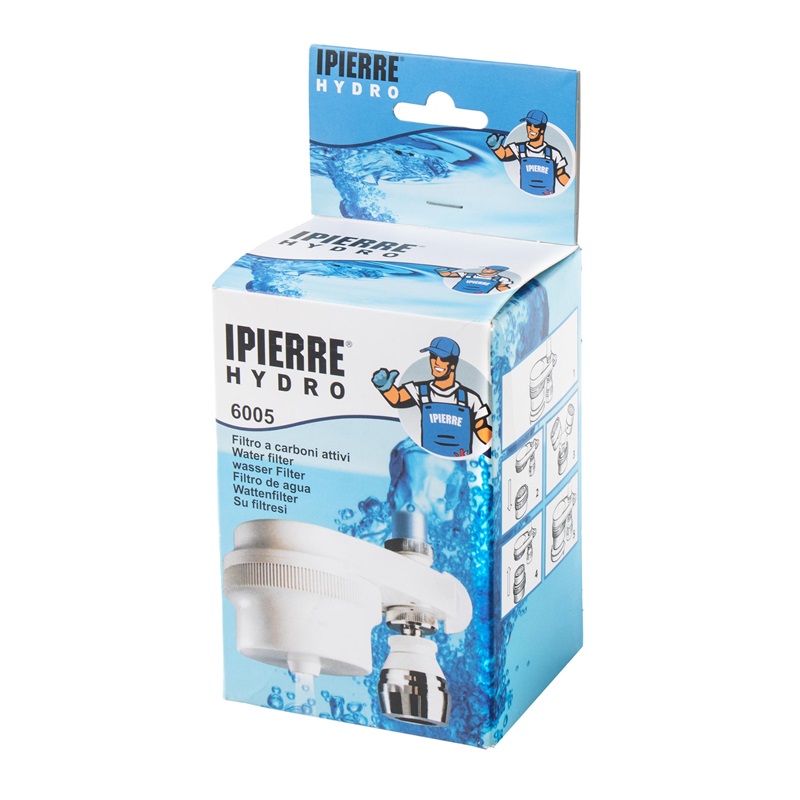

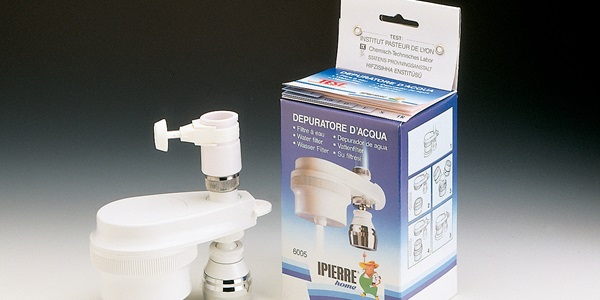

Compact, easy-to-install water purifier that improves the taste, smell and quality of water used for drinking, cooking and cleaning fruits and vegetables. Uses an activated carbon filter to remove chlorine, sediments and other impurities. Prevents bacteria from growing on the inside, making water even safer to use. Includes an aerator with steering ball joint and has two positions: spray and shower stream. Washer or thread attachment, and H22 and M24 adapters.

Properties

Adaptable and easy to install on multiple taps.

Installation with nut and washer.

Set with aerator, and water purifier with activated carbon filter.

Two-position aerator: uniform and shower jet.

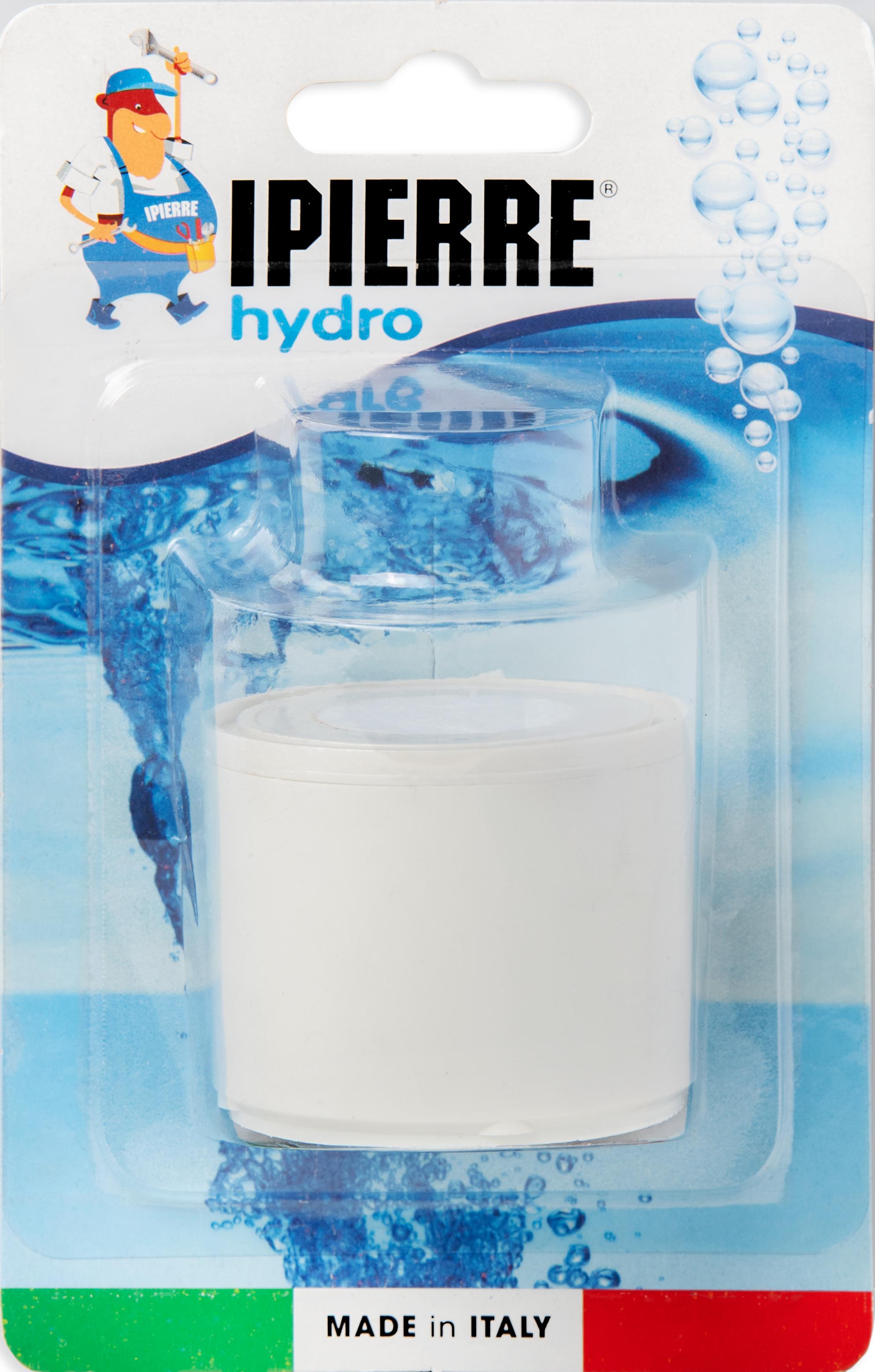

Quick replacement of the active carbon filter.

Fixation
Product measures (height x width x depth)
4,7cm mm.

Logistic data

Applications

Water quality treatment.

Save water consumption.

Installation

Operation

Aerator with steering ball joint and two positions: spray and shower stream.

Ensure that the water in the purifier flows horizontally so that water leaves via the filter (specially designed for drinking or cooking).

Ensure that the water in the purifier flows vertically so that water leaves via the aerator with ball joint (specially designed for washing or similar uses).



Threaded installation

Place the washer inside the aerator and screw everything together into the lower nozzle of the purifier.

Place the washer with protective mesh in the upper nozzle of the purifier.

Thread the purifier and aerator set onto the tap (H22 thread).

If the tap model does not fit the thread, place the M24 adapter on the diffuser.

At the beginning of the installation process, let the water run until the possible dark initial colour disappears. This is caused by the dust that may be released from the activated carbon filter.



Installation with washer

Place the washer inside the aerator and screw everything together into the lower nozzle of the purifier.

Place the washer with protective mesh in the upper nozzle of the purifier.

Thread the purifier and aerator set using the washer coupling piece (lower part with thread and upper part with adjustable rubber).

Fit the washer to the tap via the external thread.

If the adjustable rubber does not fit properly to the tap, add the smaller-diameter flexible rubber to the coupling piece for a more secure fit.

At the beginning of the installation process, let the water run until the possible dark initial colour disappears. This is caused by the dust that may be released from the activated carbon filter.



Tips and tricks

Regularly remove the aerator and clean it with anti-lime products to ensure that it works correctly.

Replace the filter after every 2,000 litres or approximately every 4-5 months (in a house with 4 inhabitants).

Do not purify hot water.

Purification is most effective when water flow is limited to 1-1.5 litres per minute.

Replace the filter if it has been inactive for 3-4 weeks.
