Description
Metallic coverstrips for 12 mm differences in level between floorings and maximum spacing of 20 mm. Fixation with adhesive or screws.
Properties
Coverstrips to cover differences in level between floorings of up to 12 mm. They cover up to a maximum spacing between floorings of 20 mm.
Humidity and wear resistant.
Strong structure.
Available sizes: 985 mm and 820 mm.
Adhesive fixation.
Applications
Installation
Adhesive bonding
Clean the surface where you will be installing the coverstrips thoroughly. Insist on spaces where dust may remain.
Place the coverstrips between the two floorings, making sure they are straight and aligned. If the coverstrips are longer than the desired length, mark the length desired and cut with a small hacksaw.
Peel off the protective paper from the adhesive and stick it tightly onto the desired position.
Fixation with screws
Place the coverstrips between the two floorings, making sure they are straight and aligned. If the coverstrips are longer than the desired length, mark the length desired and cut with a small hacksaw.
With the coverstrips in the desired place and aided by the screw holes, mark with a pencil on the flooring the spots where to make the holes, place the plugs and fix the coverstrips with the supplied screws.
Tips and tricks
Measures
| PROFILE | MODEL | LENGTH | WIDTH | Fixation | COLORS |
|---|---|---|---|---|---|
 | MOD. 2135 |
82cm | 38mm | Adhesive |
|
 | MOD. 2136 |
98,5cm | 38mm | Adhesive |
|
 | MOD. 3135 |
82cm | 38mm | With screws |
|
 | MOD. 3136 |
98,5cm | 38mm | With screws |
|
Logistic data
| PACKAGE PICTURE | EAN PRODUCT | ARTICLE | VERSION | COLOR/FINISH | SALES UNIT | PACKING CAPACITY | EAN BOX |
|---|---|---|---|---|---|---|---|

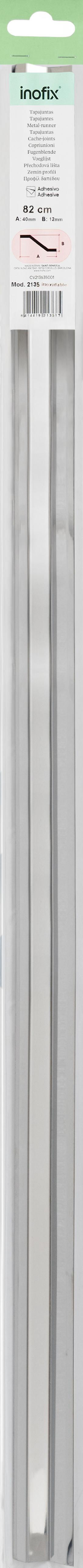

8414419213517 |
2135-1- |
000 |
stainless steel |
blister pack 1 unit |
box 20 blister packs |
8414419804319 |
|

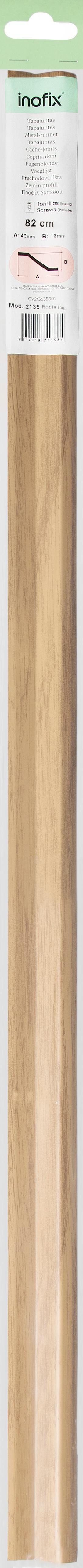

8414419213531 |
2135-3- |
000 |
iberian oak |
blister pack 1 unit |
box 20 blister packs |
8414419804326 |
|

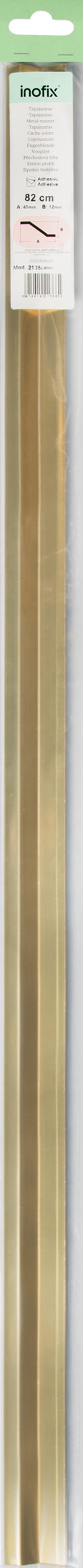

8414419213562 |
2135-6- |
000 |
brass |
blister pack 1 unit |
box 20 blister packs |
8414419804333 |
|

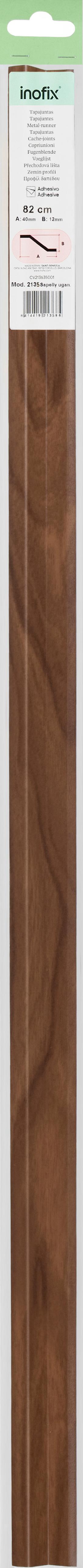

8414419213586 |
2135-8- |
000 |
ugandan sapelly |
blister pack 1 unit |
box 20 blister packs |
8414419804340 |
| PACKAGE PICTURE | EAN PRODUCT | ARTICLE | VERSION | COLOR/FINISH | SALES UNIT | PACKING CAPACITY | EAN BOX |
|---|---|---|---|---|---|---|---|
8414419213616 |
2136-1- |
000 |
stainless steel |
blister pack 1 unit |
box 20 blister packs |
8414419804357 |
|
8414419213630 |
2136-3- |
000 |
iberian oak |
blister pack 1 unit |
box 20 blister packs |
8414419804364 |
|
8414419213661 |
2136-6- |
000 |
brass |
blister pack 1 unit |
box 20 blister packs |
8414419804371 |
|
8414419213685 |
2136-8- |
000 |
ugandan sapelly |
blister pack 1 unit |
box 20 blister packs |
8414419804388 |
| PACKAGE PICTURE | EAN PRODUCT | ARTICLE | VERSION | COLOR/FINISH | SALES UNIT | PACKING CAPACITY | EAN BOX |
|---|---|---|---|---|---|---|---|

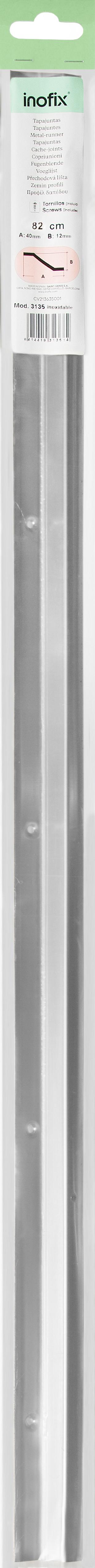

8414419313514 |
3135-1- |
000 |
stainless steel |
blister pack 1 unit |
box 20 blister packs |
8414419806276 |
|
8414419313538 |
3135-3- |
000 |
iberian oak |
blister pack 1 unit |
box 20 blister packs |
8414419806283 |
|
8414419313569 |
3135-6- |
000 |
brass |
blister pack 1 unit |
box 20 blister packs |
8414419806290 |
|
8414419313583 |
3135-8- |
000 |
ugandan sapelly |
blister pack 1 unit |
box 20 blister packs |
8414419806306 |
| PACKAGE PICTURE | EAN PRODUCT | ARTICLE | VERSION | COLOR/FINISH | SALES UNIT | PACKING CAPACITY | EAN BOX |
|---|---|---|---|---|---|---|---|
8414419313613 |
3136-1- |
000 |
stainless steel |
blister pack 1 unit |
box 20 blister packs |
8414419806313 |
|
8414419313637 |
3136-3- |
000 |
iberian oak |
blister pack 1 unit |
box 20 blister packs |
8414419806320 |
|
8414419313668 |
3136-6- |
000 |
brass |
blister pack 1 unit |
box 20 blister packs |
8414419806337 |
|
8414419313682 |
3136-8- |
000 |
ugandan sapelly |
blister pack 1 unit |
box 20 blister packs |
8414419806344 |
