Description

Cable duct base+cover (25x16 mm) for electric cable.

Properties

Cable duct base+cover 25x16 mm.

Fixation with 1 mm thick foam adhesive / screw fixation or Inofix 3100 plug.

EC marked according to LTR (low tension regulations). Complies with the European Directive on the non-use of hazardous substances (ROHS). Complies with UNE-EN-50085-1:2006 and UNE-EN-50085-2-1:2008 standards, and 73/23 CEE and 93/68 CEE directives.

Operating temperature -5ºC, +60ºC. Protection against general wear and tear IPXX5 (cable duct base + cover). Degree of protection IP40.

Range of joining accessories available for different finishes.

Applications

Attach, conceal and protect electric wire.

Installation

Clean the surface on which the cable duct is to be installed, taking special care with areas where dust can linger.

If necessary, the cable duct can be cut with a hacksaw to adjust its length to the desired size.

If it is adhesive, peel off the adhesive paper and press so that the cable duct is securely affixed.

Open the cover and pass the cable inside the cable duct. Once the installation is done, close the cover again.

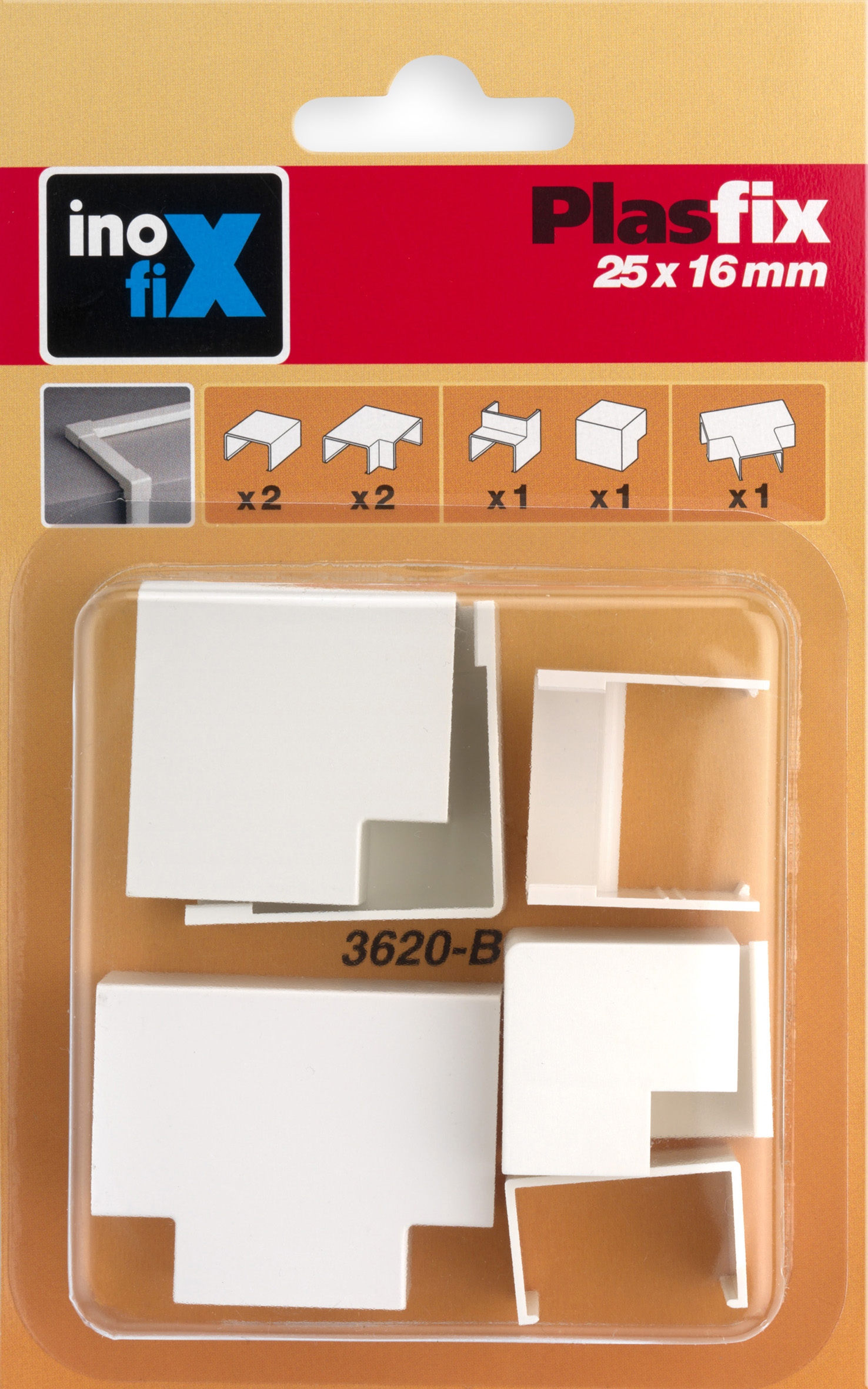

For a more attractive and integrated visual finish, add relevant accessories at cable duct cross joints, elbow joints and intersections.

Tips and tricks

Attach joining accessories to cross joints, elbow joints and intersections for an aesthetically pleasing finish.

Cable duct can be painted in the same colour as the wall so that the installation is fully integrated with the aesthetics of the surface.

Measures

MODEL TYPE LENGTH Fixation COLORS
MOD. 2602
With detachable cover
2 m.
Adhesive
MOD. 3602
With detachable cover
2 m.
With screws

Logistic data

PACKAGE PICTURE EAN PRODUCT ARTICLE VERSION COLOR/FINISH SALES UNIT PACKING CAPACITY EAN BOX
8414419260221
2602-2G
001
white
strip 2 metres
bag 15 strips
8414419811348
PACKAGE PICTURE EAN PRODUCT ARTICLE VERSION COLOR/FINISH SALES UNIT PACKING CAPACITY EAN BOX

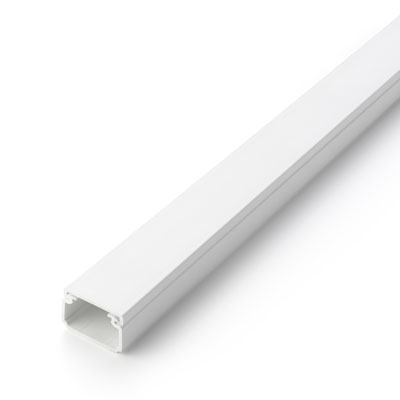

8414419360228
3602-2G
000
white
strip 2 metres
bag 15 strips
8414419811515
