Description

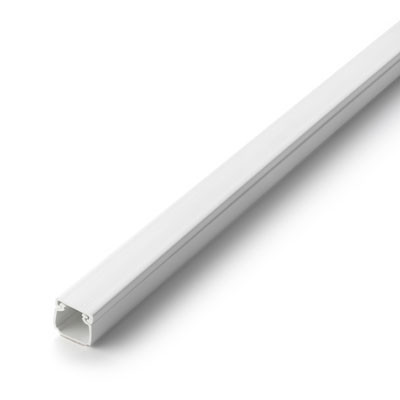

Cable duct with detachable cover 16 x 16 mm for electric wire.

Properties

Cable duct with detachable cover 16 x 16 mm.

Fixation with 1 mm thick foam adhesive / screw fixation or Inofix 3100 plug.

EC marked according to LTR (low tension regulations). Complies with the European Directive on the non-use of hazardous substances (ROHS). Complies with UNE-EN-50085-1:2006 and UNE-EN-50085-2-1:2008 standards, and 73/23 CEE and 93/68 CEE directives.

Operating temperature -5 ºC, + 60 ºC.

IPXX5 impact protection (cable duct with separate cover). IP40 degree of protection.

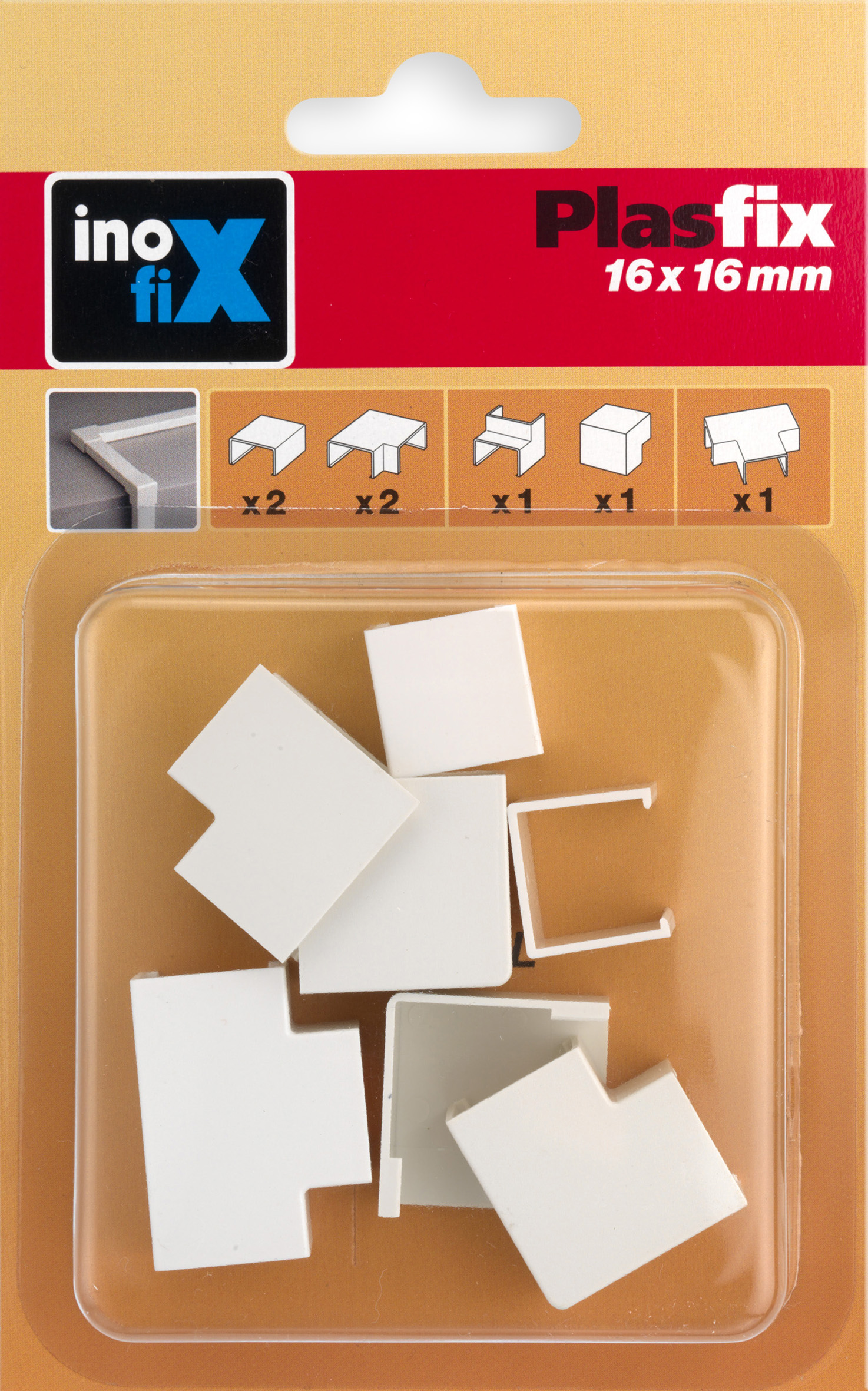

Range of joining accessories available for different finishes.

Applications

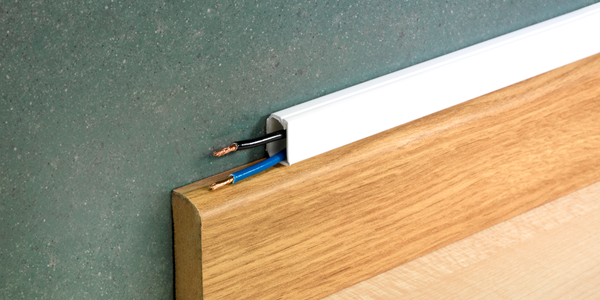

Attach, conceal and protect the electrical wiring.

Installation

Clean the surface on which the cable duct is to be installed, taking special care with areas where dust can linger.

If necessary, the cable duct can be cut with a hacksaw to adjust its length to the desired size.

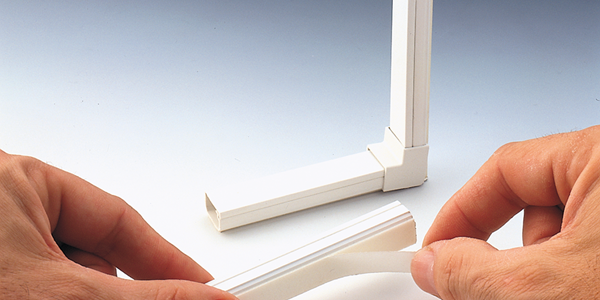

If it is adhesive, peel off the adhesive paper and press so that the cable duct is securely affixed.

Open the cover and pass the cable inside the cable duct. Once the installation is done, close the cover again.

For a more attractive and integrated visual finish, add relevant accessories at cable duct cross joints, elbow joints and intersections.

Tips and tricks

Attach joining accessories to cross joints, elbow joints and intersections for an aesthetically pleasing finish.

Cable duct can be painted in the same colour as the wall so that the installation is fully integrated with the aesthetics of the surface.

Measures

MODEL TYPE LENGTH Fixation COLORS
MOD. 2601
With detachable cover
2 m.
Adhesive
MOD. 3601
With detachable cover
2 m.
With screws

Logistic data

PACKAGE PICTURE EAN PRODUCT ARTICLE VERSION COLOR/FINISH SALES UNIT PACKING CAPACITY EAN BOX
8414419260122
2601-2G
000
white
strip 2 metres
bag 20 strips
8414419811331
PACKAGE PICTURE EAN PRODUCT ARTICLE VERSION COLOR/FINISH SALES UNIT PACKING CAPACITY EAN BOX
8414419360129
3601-2G
000
white
strip 2 metres
bag 20 strips
8414419811508
